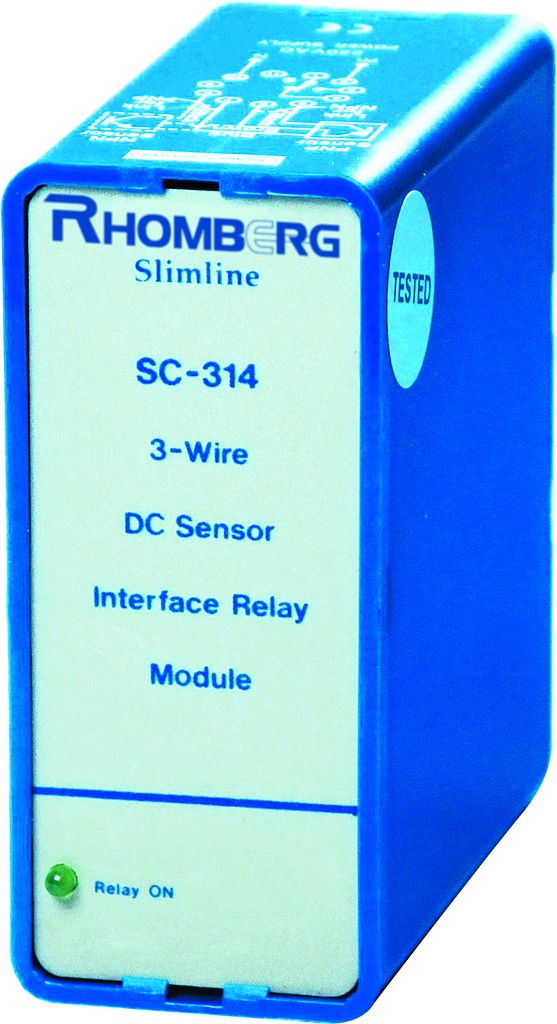

SC314 – 3-Wire DC Sensor Interface Relay Module

Clear

Description

Rhomberg – 3-Wire DC Sensor Interface Relay Module

DC Output Supply For Sensors: 10-15V at 30mA

Sensors Input: (PNP pin 5, NPN pin 8)

Each sensor must be able to conduct at least 90mA to operate the modules internal relay.

Max switching speed: 25 Hz (when using relay output)

http://storage-download.googleapis.com/spec/SC314.pdf



Additional information

Voltage

12VAC, 24VAC, 115VAC, 230VAC, 400VAC, 415VAC, 525VAC

Contacts

Single Pole
